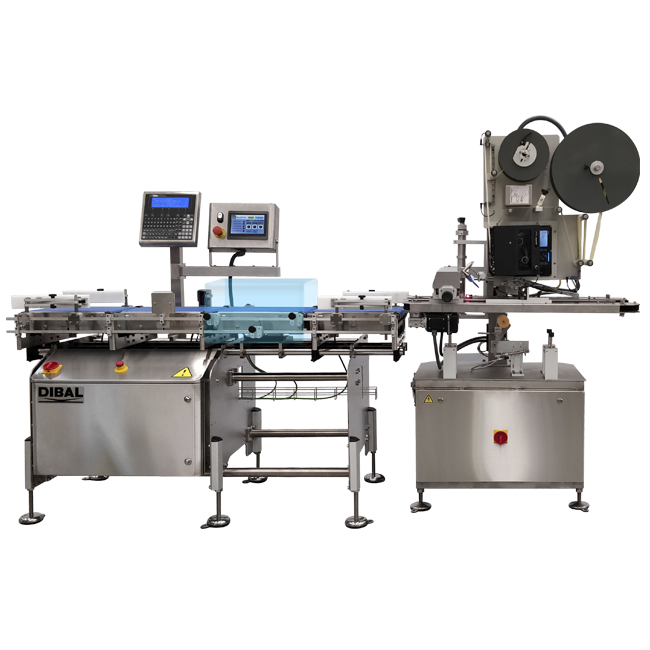

Automatic C-Wrap Labeling Machines Dibal CLS-4500 Serie

The Dibal CLS-4500 Advanced Automatic Weighing and C-wrap Labeling Equipment is a must-have for efficient labeling. This device allows the use of extra-long labels, resulting in a larger print area and more extensive product information.

Key Features:

• Compact design for seamless integration into existing production lines
• Easy change of tray size, reducing changeover times
• Optional automatic motorized belt adjustment for ultimate user convenience
• Supports labels up to L340 mm
• Optional configuration for top and/or bottom labeling and "full wrap" labeling
• Effortlessly prints Windows fonts and logos, ensuring consistent brand representation.

Upgrade your labeling process with our Automatic Weighing and C-wrap Labeling Equipment and achieve efficiency, accuracy, and a professional appearance for your products.

Features:

• Labeling fixed/variable weight/price.
• Order management.
• Total labeling (3 levels).
• Generic traceability on label.
• Customized to comply with EU Regulation 1169/2011 regarding food information.
• Barcodes:
• EAN-8, EAN-13, EAN-128, CODE 128, ITF-14, GS1 Datamatrix, and GS1 Databar (up to 4 codes per label).
• Maximum number of free texts per item:
• Up to 30.
• Maximum number of logos per label:
• Up to 999.
• Maximum number of fonts:
• Up to 90 (true type).
• Maximum number of label formats:
• Up to 999.
• Upstream and downstream connections included.

• Weighing type:
• Dynamic or static.
• Ranges depending on the dimensions of the conveyor:
• 6 kg / 2 g with conveyor belt up to L400 x W280 mm.
• 10 kg / 5 g, 3 kg / 1 g, or other, please contact us.


• Print type:
• C-label or "full wrap": Thermal Transfer (TT). Ribbon saver, optional.
• Top and/or bottom labeling: Direct Thermal (DT) or Thermal Transfer (TT).
• Print head:
• C-label or "full wrap": 4”.
• Top and/or bottom labeling: 4”.
• Resolution:
• 8 dots/mm.
• Print speed:
• C-label module: up to 406.4 mm/s.
• Second top labeler and bottom labeler: up to 250 mm/s.
• Label applicator type:
• C-labeling or "full wrap": contact/drag.
• Top labeling: “Air-jet®” (AA) or pneumatic piston, optional.
• Bottom labeling: contact.

• Dimensions depending on the inches of the print head:
• C-labeling module:
• C-labeling: from W60 x L120 mm to W80 x L340 mm.
• "Full wrap": contact us.
• Top labeling: from W60 x L60 mm to W80 x L140 mm. T

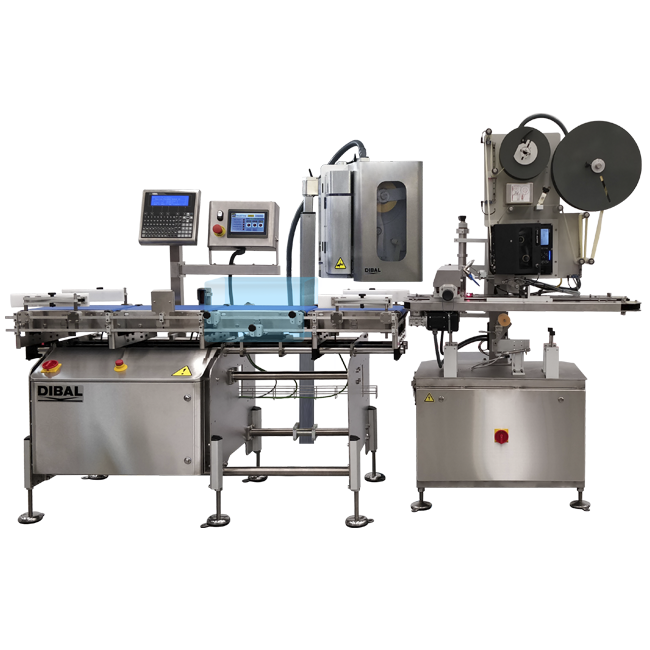

• op label module: from W40 x L40 mm to W102 x L120 mm.

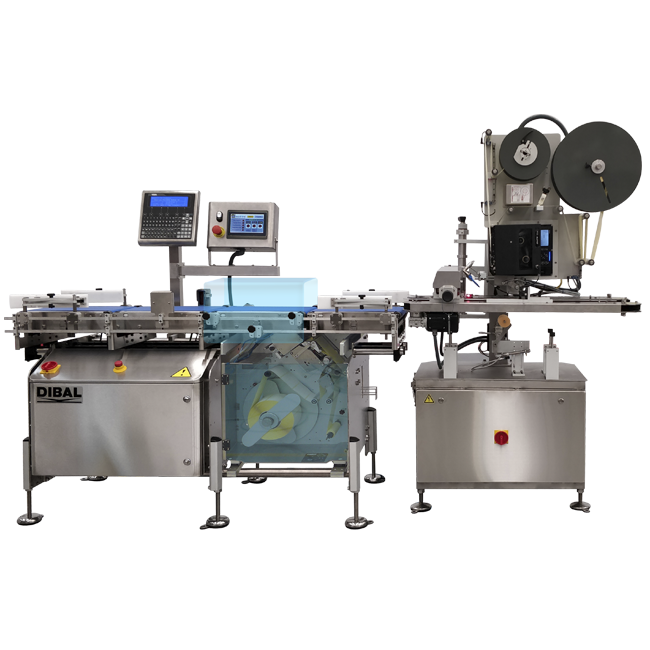

• Bottom label module: from W40 x L40 mm to W102 x L120 mm.

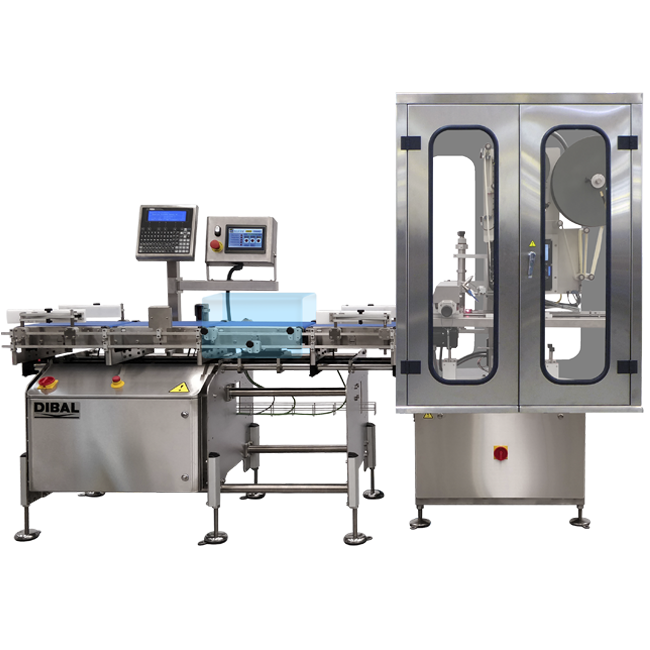

Structure: Material: AISI 304 stainless steel and anodized aluminum. Protection cover for C-labeler (optional): Material and features: AISI 304 stainless steel, with water protection. Belts (in order-, input-, weighing-, and separation belts): Material and properties: polyurethane, rigid or elastic, depending on the equipment range, with FDA approval. Comfort: Material: stainless steel. "Qwerty" keyboard and graphic LCD display with backlight. Guides: It includes standard product guides in order and separation conveyors.

Communication to PC:

• Ethernet-TCP/IP. PC

Software:

• DIS: for equipment configuration, production data management, and backup (LBS).
• DLD: for graphic design of labels.
• Integration tools: see the software section.

Power & compressed air:

• Electric: 230 V and 50 Hz.
• Air: max. 150 l/min (at 6-8 bar)."
