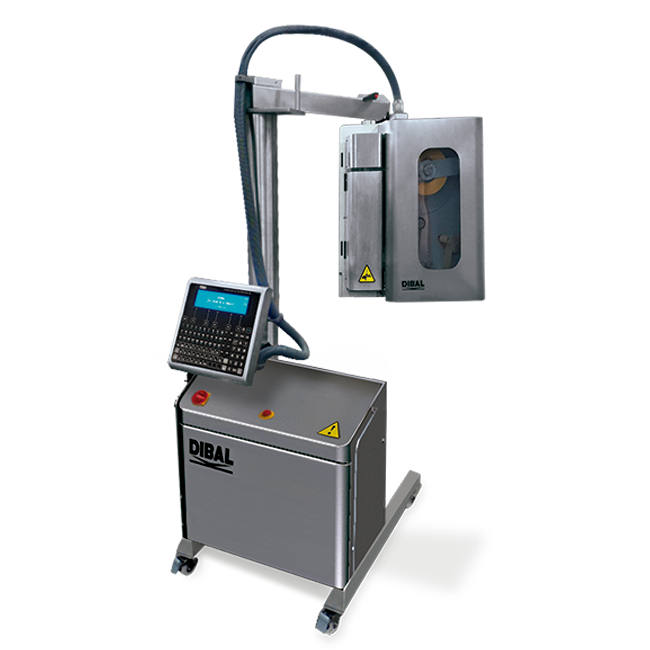

Automatic Labeling Machines Dibal LA-4500 Series

The LA-4500 automatic labeling system without weighing is the ideal solution for automatically labeling products with a fixed weight and price. Thanks to its mobile structure, the system can be easily integrated at any point on the production line, providing a flexible choice.

Key features of the system include the ability to label both fixed and variable weights and prices. Moreover, it complies with EU Regulation 1169/2011 regarding food information, allowing you to meet legal requirements.

With support for various barcodes such as EAN-8, EAN-13, EAN-128, CODE 128, ITF-14, QR code, GS1 Datamatrix, and GS1 Databar (up to 4 barcodes per label), the system offers extensive capabilities for adding barcodes to your labels.

The air applicator ensures maximum productivity while accurately applying the labels. The LA-4500 labeling system optimizes your labeling process and contributes to a more efficient workflow, saving you time and costs.

Here's a brief summary of this machine:

Labeling System

• Print Type:
• Direct Thermal (DT) or Thermal Transfer (TT).
• Print Head:
• Long-lasting 4” (historical control).
• Resolution:
• 8 dots/mm.
• Print Speed:
• Up to 250 mm/sec.
• Type of Label Applicator:
• Pneumatic piston, in top labeller also the possibility of a 90º rotating applicator and "Air-jet®" air blowing (AA).
• Position of the Label Applicator:
• Top.

Labels

• Maximum Width of the Backing Paper:
• 110mm.
• Inner Diameter of the Cardboard Core of the Label Roll:
• Ø76 mm (the cardboard joint must be as wide as the backing paper).
• Label Dimensions: from L40 x W40 mm to L120 x W102 mm.

Construction

• Structure:
• AISI 304L stainless steel and anodized aluminum.

• Control Panel:
• Material: AISI 304L stainless steel.
• "Qwerty" keyboard and graphic LCD screen with backlight.
• Height Adjustment.

Communication to PC

• Ethernet-TCP/IP.
• RS-232.

PC Software

• DIS: for equipment configuration, production data management, and backup (LBS).
• DLD: for graphic design of labels.
• Integration tools (see software section).

Power Supply & Compressed Air

• Electric: 230 V / 50 Hz; 115V / 60Hz.
• Air: max. 150 l/min (at 6-8 bar).
