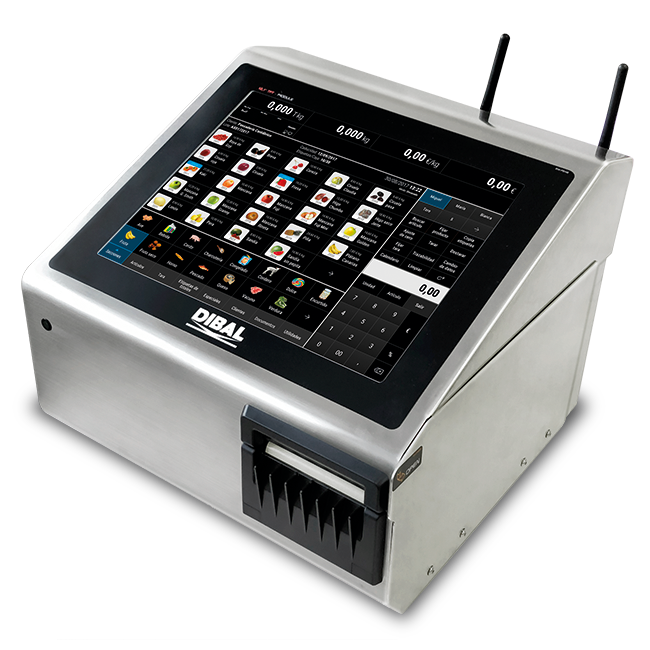

Dibal CL-3 manual labeling machine

The Dibal CL-3 manual labeling machines offer a powerful PC architecture and intuitive operation via the touchscreen and simple menus. These labelers are ideal for pre-packaging tasks and can be connected to a PC for data exchange and updates.

Key features:
- High-quality manual labeling machine with a 3" label printer.
- Suitable for pre-packaging in food stores and industries.
- Modern, compact, and easy-to-clean design.
- Intuitive operation and configurable screen.
- Complies with EU Regulation 1169/2011 for food information to customers.

• Integration with Windows IT applications and ERP systems.
• Available features with pre-installed SW-CS software:
• A wide range of templates for sales screen, article database, and food images (meat/butcher, fruit/vegetable, fish/seafood, etc.).
• Modern, simple, and intuitive control screens that facilitate use and improve operator experience.
• Unlimited article keys (in consecutive screens).
• All keys can contain texts, icons, images, etc.
• Ability to automatically arrange keys based on different criteria: code, name, etc.
• Optional display of label on the screen.
• Printing labels with Windows fonts.
• Predefined label formats.
• Generating lists for total sales or detailed (per item, customer, operator, period...) with three output options: on the screen, via label printer, or via an external printer.
• Traceability management.
• Option to set normal price and offer price for each item.
• Export to CSV.
• Data migration.
• Backup.
• The SW-1100 application runs automatically on startup.
• User-designed Import/Export.
• 3 levels of totals in labels.
• Also available with an open solution for installing one of the most popular POS terminal applications on the market.

Weighing: Construction:

• Stainless steel housing.
• Access to all non-metrological components without the need to unlock the labeling machine.

Display:

• Configurable 12.1-inch TFT touchscreen (W250 x H188 mm).

CPU:

• Processor: Intel Celeron Brasswell.
• Memory: 4GB.
• Optional: 8 GB (subject to change without prior notice).
• Hard drive: 128 GB SSD.

Communication:

• 4 USB (3.0).
• 1 RS-232.
• 1 Ethernet.
• 1 DisplayPort (additional screen).
• 1 audio (microphone).
• 1 line output (speakers).
• Optional:
• Wifi.

Printer:

• Model available with 1 printer for labels.
• Possibility to print other information in linerless, change paper roll and operating mode.
• 3” thermal printer.
• Resolution: 8 dots/mm; speed: 100 mm/sec.
• Optional:
• Additional external printer.

Labels:

• Paper width from W30 mm to W80 mm.
• Unlimited programmable formats.
• Unlimited logos.
• Windows fonts.
• Barcodes: EAN-13, Code 128, and QR.
• Unlimited information fields per label.
• Unlimited programmable texts.
• Unlimited number of heads per label.
• Manual and automatic pre-packaging modes.
• Printing "n" identical labels.
• Packaging date, expiration date, and additional date (for each application).
• Alphanumeric batch number.
• Unlimited types of generic traceability (for meat, fish, fruit, vegetables, etc.) and unlimited products. Included in current European legislation on cattle traceability.

Food information:

• Compliance with EU Regulation 1169/2011 regarding the obligation to provide nutrition information to consumers by December 13, 2016:
• Minimum font size: 1.2 mm.
• Windows fonts.
• Effects: bold, underline, or another effect of a Windows font for each character in the text.
• Ability to use the general text "G" (21 x 64,000) for ingredients to highlight allergens with those effects and fonts.
• Programmable allergen table: automatically identifies allergens in ingredient texts.
• Ability to print 2 labels for each operation: programmable per PLU, configurable information, 2nd automatically or manually printed label (also usable as promotional labels).

Other applications (reports, lists, etc.):

• Ability to print information stored on the labeler on linerless paper:
• Unlimited number of items.
• Unlimited programmable formats.
• Unlimited logos.
• Windows fonts.
• Barcodes: EAN-13 Code 128 and QR.
• Operator name.

Security:

• Management of security levels.

Connectivity with other devices:

• PC.
• External printers.
• Barcode scanners.
• Other peripherals: keyboard, mouse, etc.
• Other CL-3 labeling machines.
• Dibal DMI-600 Series - indicators.

Software:

• SW-CS for Windows: touch application for sales, weighing management, and label design (DLD).
• Integration tools: in Windows to facilitate communication with the Back-Office.

Power supply:

• Mains voltage: 110 to 230 VDC.

Power consumption:

• 20-62.5 W (depending on operating conditions).
