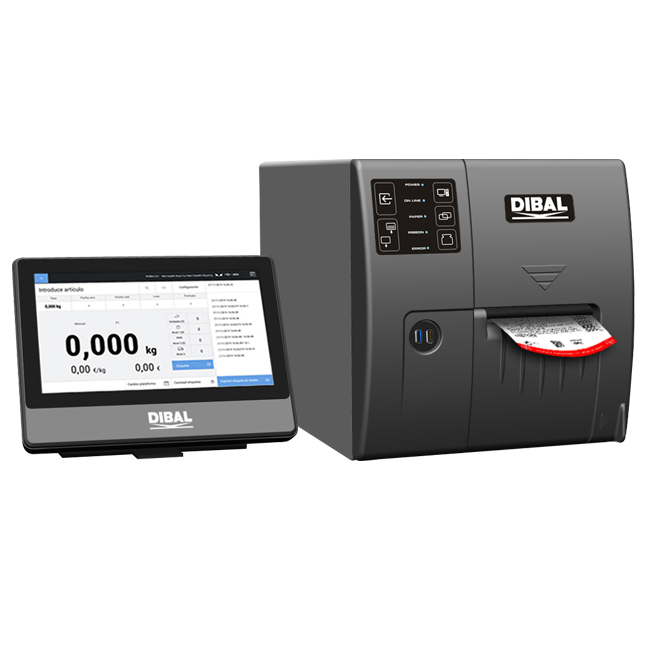

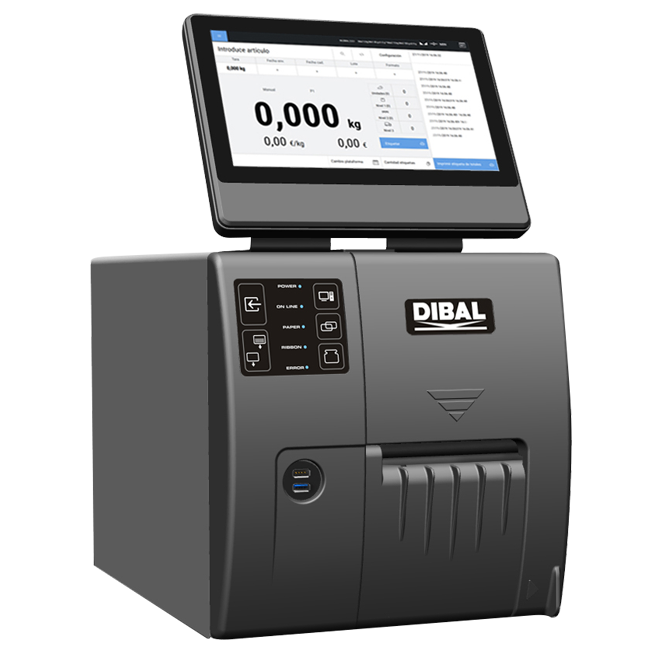

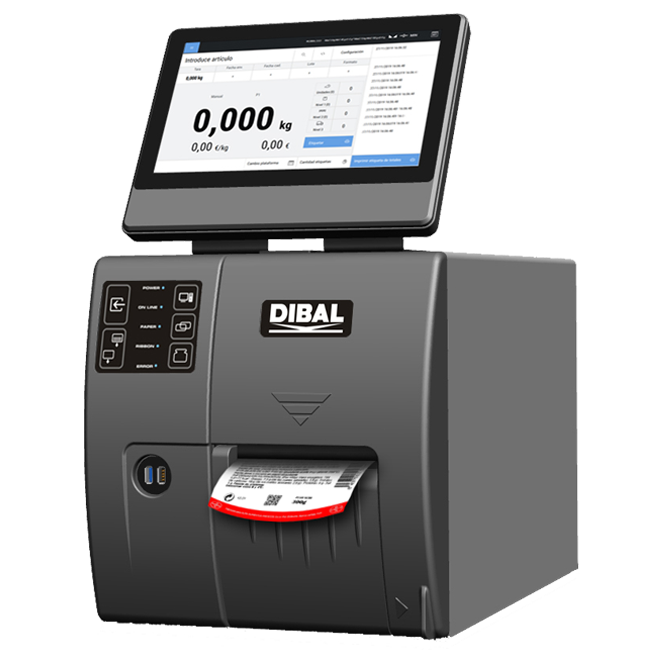

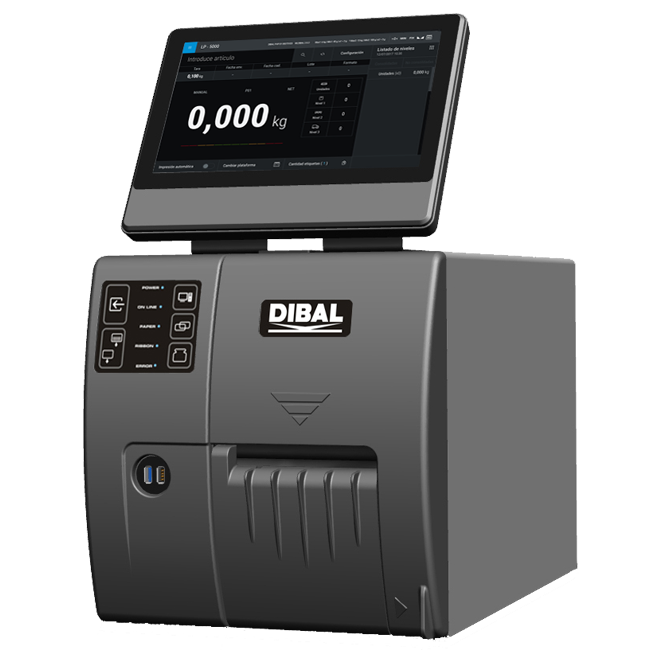

Dibal LP-5000 Series manual labeling machines

The LP-5000 labeler is specifically designed for the food industry, addressing demanding environments that require manual weighing and labeling. It is capable of quickly capturing weights and exporting them to IT systems.

The proprietary software simplifies setup and programming, allowing customization of variables, barcodes, items, customers, and label formats (including on-screen graphic design).

The LP-5000 is a manual label printer with versatile, user-friendly, and intuitive operation.

Features:

• Ability to label fixed/variable weight or quantity.
• Checkweigher mode with fill display on the status bar.
• Access to settings and usage based on user levels.
• Comprehensive, easily editable task information for quick on-screen changes (customer, batch, price, tare, dates, traceability, label size, etc.).
• Graphic label designer on the equipment for creating and editing formats.
• Tare options: fixed, glaze percentage, cumulative.
• Generic traceability on the label.
• Label total management (up to 3 levels) for easy editing and reprinting.
• Ability to print text in different languages (UNICODE).
• Custom print fonts and all types of TTF fonts.
• Loading and processing logos and easy printing of images.
• Front USB interface for full or partial backups, logo and image uploads, and data import/export.
• Configuration and printing of most one- and two-dimensional barcodes.
• Customized to comply with EU Regulation 1169/2011 regarding food labeling.
• Automatic or manual label printing for products with variable weight, or preprogrammed for fixed weight or non-weighed items.
• Suitable for legal metrology.

Optional Weighing:

• Connection to 1 weighing platform with up to 16 load cells with metrological verification.
• Optional: Connection to a 2nd weighing platform with up to 16 load cells with metrological verification.
• Wide range of series.
• Accuracy: multi-range (3,000 divisions), single-range (6,000 divisions), multi-interval (3,000 divisions).

Labeling System:

• Print Type: Direct thermal (DT).
• Optional: Thermal transfer (TT) (ribbon).
• Printer Head: 4” long lifespan with history control.
• Resolution: 8 dots/mm.
• Movable paper sensor (adjustable for label width and type).
• Print speed: up to 250 mm/sec.
• Printer usage control for predictive maintenance.

Labels:

• Dimensions: From W30 x L30 to W100 x L500 mm.
• Core inner diameter: 40 mm.
• Maximum label roll diameter: 200 mm.
• Maximum backing paper width: 102 mm.
• Option to use paper, polypropylene, and perforated cardboard labels.

CPU:

• Processor: Celeron N3160.
• RAM: 4 GB DDR3 (expandable to 8 GB).
• Hard Drive: 128 GB.

Structure:

• AISI 304L stainless steel, anodized aluminum, and textured ABS.
• Console: ABS plastic.

Display:

• 10.1” flat TFT projected capacitive touchscreen (resolution: 1,024 x 600).

Communication:

• 1 TCP/IP Ethernet.
• 2 RS-232.
• 2 USB fronts (3.0 + 2.0).
• Optional wifi.

Power Supply:

• 110-230 VAC 50/60 Hz.

Possible Integration with Other Equipment:

• Weighing platform (up to 16 load cells).
• Another LP-5000.
• Printers with ZPL interface (up to 3 simultaneously).
