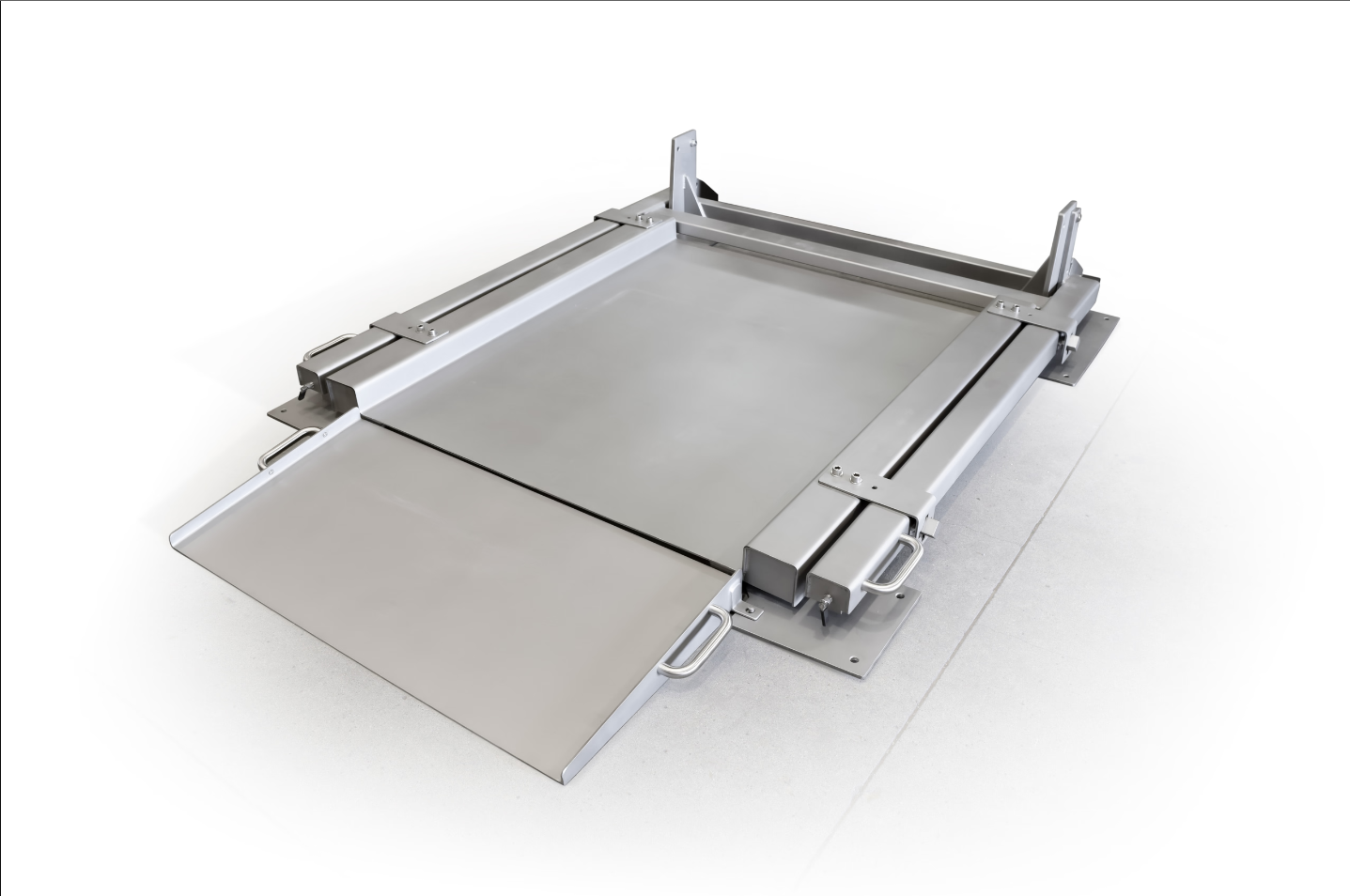

Floorscale Giropes WPC

The WPC system comprises three main elements:

1. An extra-flat weighing platform with pre-installed load cells and a junction box, manufactured directly in the factory. The weighing surface consists of double steel plates.

2. The chassis positioned on the ground, providing support for the weighing platform. This chassis also functions as the mechanism to lift the platform for cleaning operations.

3. An access ramp to the weighing surface of the platform. This access ramp can be attached together with the chassis and is detachable, simplifying the cleaning of both the ramp and the surface.

All three elements are made of stainless steel AISI304 for excellent resistance in moist environments. For the most demanding conditions, AISI316 can also be used.

Technical Features of WPC:

• TYPE:
• Extra-flat lifting platforms
• Bent steel plate profile structure
• MATERIAL:
• Fully stainless steel AISI 304
• Fully stainless steel AISI 316
• INSTALLATION:
• Ground-mounted requiring fixation
• DIMENSIONS:
• From 800 x 800 to 2000 x 1500 mm
• CAPACITIES:
• 300 kg to 3000 kg
• HEIGHT:
• 50 mm, including access ramp
• INTERNAL ACCESS:
• With a gas pressure shock absorber lifting system.
• Without screws
• CABLE LENGTH:
• 5 m
• SUPPORT:
• 4 rubber base feet
• GAS PRESSURE SHOCK ABSORBERS:
• Made of stainless steel AISI 316
• SCREWS:
• Stainless steel
• LOAD CELLS:
• Stainless steel with IP68 or IP69k protection
• Optional ATEX version for load
• INDICATORS:
• GI400i IP65
• GI400i IP68
• ACCESSORIES:
• Column
