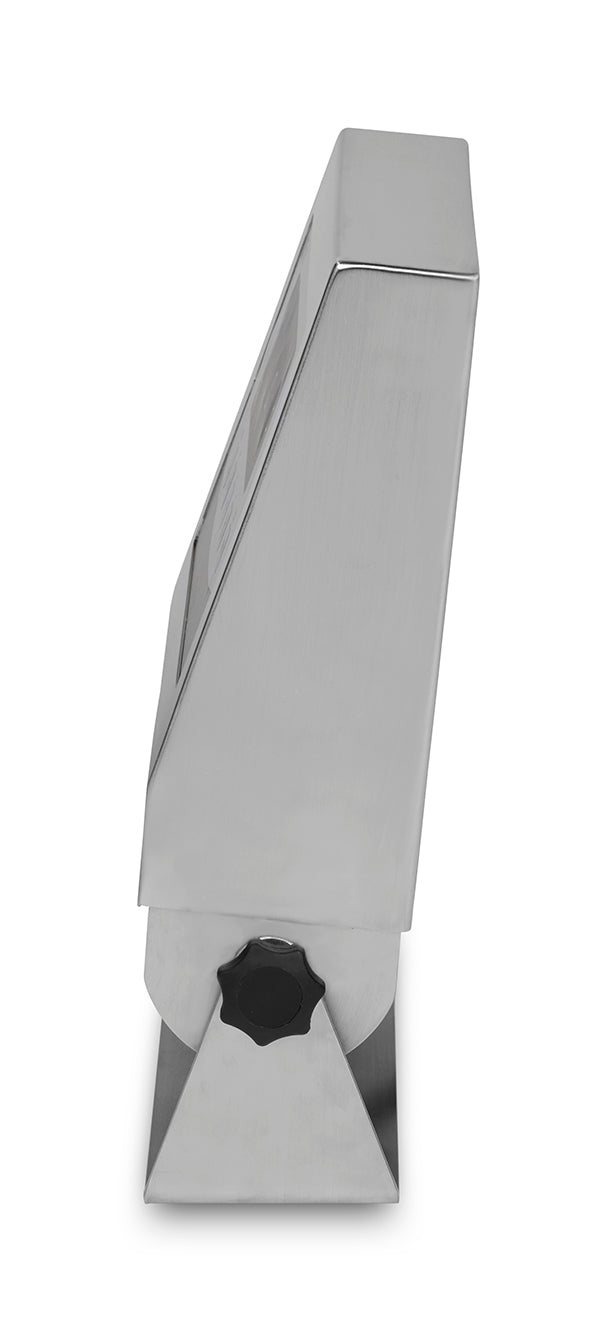

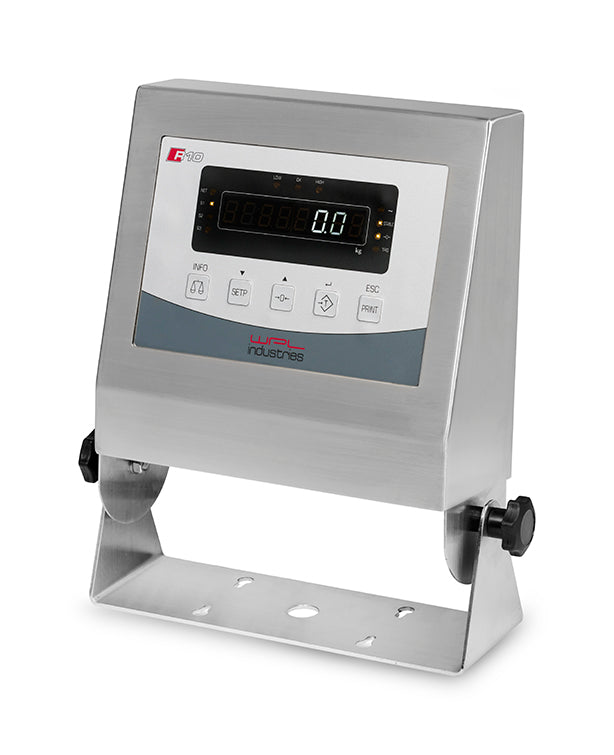

WPL R10 WP waterproof indicator

The R10 WP indicator is specially designed for extremely wet environments. With its RVS316L quality, you can be confident that corrosion, such as from saltwater, will not affect this indicator. Additionally, the indicator can be rinsed with water. Therefore, it's ideal for outdoor use and for wet environments with saltwater.

The indicator can be used as a standalone setup or, through its advanced communication capabilities, as part of an industrial weighing system.

The R10 is proudly made in Holland!

Key features of the R10 include:

• Design and styling for industrial use (robust, high IP rating, and easy to clean).
• Highly user-friendly software.
• Can connect to one or more load cells. Available as a tabletop model, wall-mounted, or as a built-in panel.
• High-quality construction in RVS306 stainless steel.
• Equipped with the latest technology, including ice white LEDs with adjustable intensity.
• High-capacity optional battery.
• Optional data storage with flash memory.
• Expandable with industrial standard shields (Arduino form factor) for WiFi, Bluetooth, and Ethernet expansion.
• Ability to connect three weighing scales.
• LED Display, 0.56 inches (14 mm), 7 segments.
• 24-bit Sigma/Delta ADC.
• On-board temperature compensation.
• Battery charging circuit.
• USB connection for linking to a PC.
• Built-in industrial connectors for load cells and serial ports.
• Real-time clock.
• Various functions accessible via membrane keypad.
• Password protection against unwanted changes.
• 50 presets for tolerance weighing with underweight, ok weight, and overweight, including tare and price. • 13 onboard digital I/O channels for further expansion.
• Printout to label printer for weight registration.
• Multi-range or multi-interval weight display.
• Various digital filters for different applications.
• Relay output (4).

OPTIONS/ACCESSORIES

• Analog output, 12-bit resolution, 0-10VDC, 0-20mA, 4-20mA.
• Relay outputs (4), normally open (SPST) @24VDC/250 VAC max 3 Ampere.
• Interface for Profinet®, Modbus TCP®, EtherNet/IPTM, and DeviceNet® protocols.
• Battery pack.

Software applications:

• Simple weighing.
• Counting.
• Tolerance checkweighing +/-.
• Filling.
